Dc Submersible Powered Well Pump Systems 12-48V Surface Solar Water Pump Performance Off Grid Solar for Irrigation

Optimal Performance Powered by Solar Energy

The Zeoluff DC Submersible Powered Well Pump Systems 12-48V is designed to combine efficiency and eco-friendliness, offering a sustainable solution for water management in off-grid locations. This advanced surface and solar-driven water pump system is tailored for irrigation purposes, ensuring that your agricultural operations or garden watering needs are met without relying on traditional power sources. Harnessing the clean energy provided by the sun, this pump system offers exceptional performance, enabling reliable water distribution with minimal environmental impact.

Durable Construction and Versatile Voltage Range

Built with durability in mind, the Zeoluff DC Submersible Pump offers a robust design to withstand varying weather conditions and long-term use. Operating seamlessly between 12-48V, this pump system is versatile enough to accommodate a wide range of solar energy setups and applications. Its precision engineering ensures optimal hydraulic performance, making it suitable for not only irrigation but also water distribution for fountains, ponds, and other water-intensive projects. If you’re seeking adaptability combined with high-grade reliability, this pump system delivers on both fronts.

Ideal for Off-Grid Applications

Whether you’re managing irrigation systems on remote farmland or providing water to off-grid living setups, the Zeoluff DC Submersible Powered Well Pump Systems offers unmatched flexibility. Designed to be powered by solar panels, the system eliminates the dependency on traditional electricity grids, reducing overhead costs while promoting sustainable water usage. Its surface and submersible capabilities make it a dynamic choice for users with diverse water pumping requirements, from shallow wells to deeper water reservoirs.

Why Choose the Zeoluff DC Submersible Solar Water Pump System?

The Zeoluff DC Submersible Pump System bridges innovation and functionality for water irrigation solutions. Leveraging solar technology, this pump provides a greener alternative for consumers who value environmental consciousness without sacrificing performance. With an easy-to-install design and adaptable voltage range, you’ll save energy and enjoy hassle-free operations for years to come. Make the shift to sustainable water management with the Zeoluff DC Submersible Powered Well Pump Systems 12-48V today.

Specification

Certification	CE and ISO 9001
Solar Panel Power	1.3 to 1.5 Times Solar Pump Power
In SeriesSolar Panel Connection	In Series
Customized Support	OEM & ODM
Serial number	006
Packaging	Wooden Case

Product Description

Pump Model	3DPC3.5-80-48-600
Pump Body Diameter	3 inch
Outlet Diameter	1.25 inch or 1.5 inch
Max.Flow	3500 liter per hour
Max. Head	80 meter
Voltage	dc 48 v
Power	600 watt
Solar Panel	2 pcs 380w in series

Tips:

In addition to this solar water pump model, we have hundreds of models to provide, please contact the sales for specific information.

How to Choose Solar Pump

How to Choose Solar Pump Model?

HEAD CALCULATE:
The horizontal water pumping distance and vertical water pumping distance, especially the vertical distance.
FLOW CALCULATE:
How many cubic meter water per hour/per dayis needed for irrigation use?

Please refer to the technical data diagram below to select the solar pump model

Tips:

We have more than 100 models and 7 categories of solar water pumps for customers to choose from.

Or you can contact us to design a solar irrigation system for you for free according to your needs.

ADVANTAGE FOR SOLAR WATER PUMP

1.With high efficiency permanent magnetic motor, efficiency improved 15%-30%

2.Environmental protection, clean energy, can be powered by solar panel, battery as well as AC electric.
3.Over-load protection, under-load protection, lock-rotor protection,thermal protection
4.With MPPT function
5.Much longer life than the normal AC water pump

How to Connect the Solar Pumps:

Pump connects U V W ,float switch connects TH COM Very simple connection .



Tips 1: Do not reverse the positive and negative of power, otherwise it will not work.

Tips 2: Before you start wiring the controller box, switch must be in the off position



MPPT Controller Features

Automatically run when power enough or tank is not full. Automatically off when tank is full. Double seal effect in waterproof and
leak-proof .
Soft start technology: No impulse current, longer life for the pump motor.
High voltage/Low voltage/Over-current/High temperature protection

Application

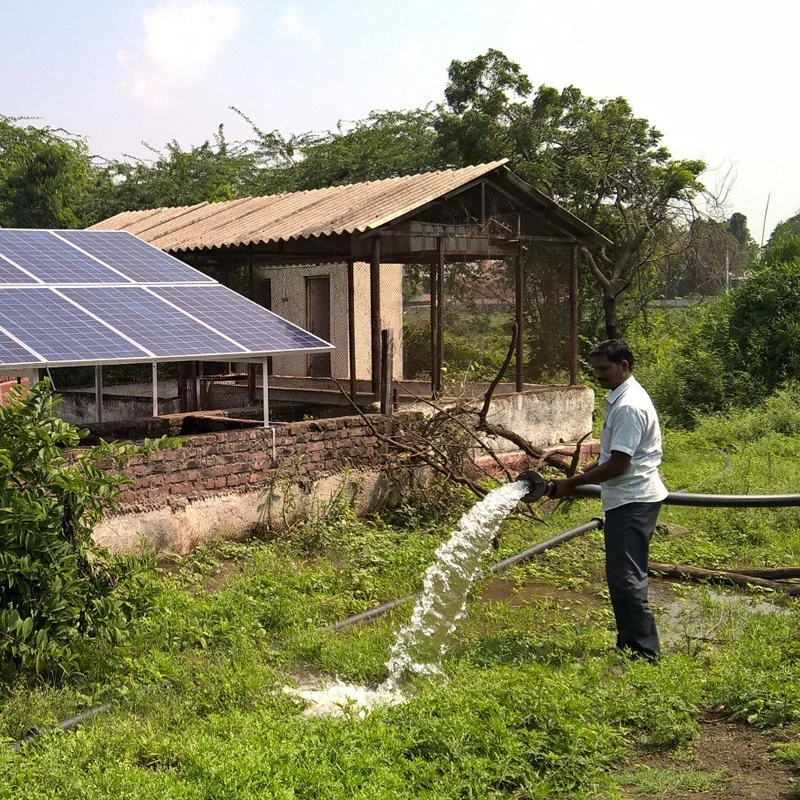

Off grid living

For long-term use, the cost of a solar water pump system is much cheaper than using a grid connection or a generator. By storing water, the system can provide reliable water supply 24 hours a day.

livestock

The solar water pump system provides good drinking water for livestock, is environmentally friendly and pollution-free, and ensures animal health. Water pumps have become an alternative to pastures around the world.

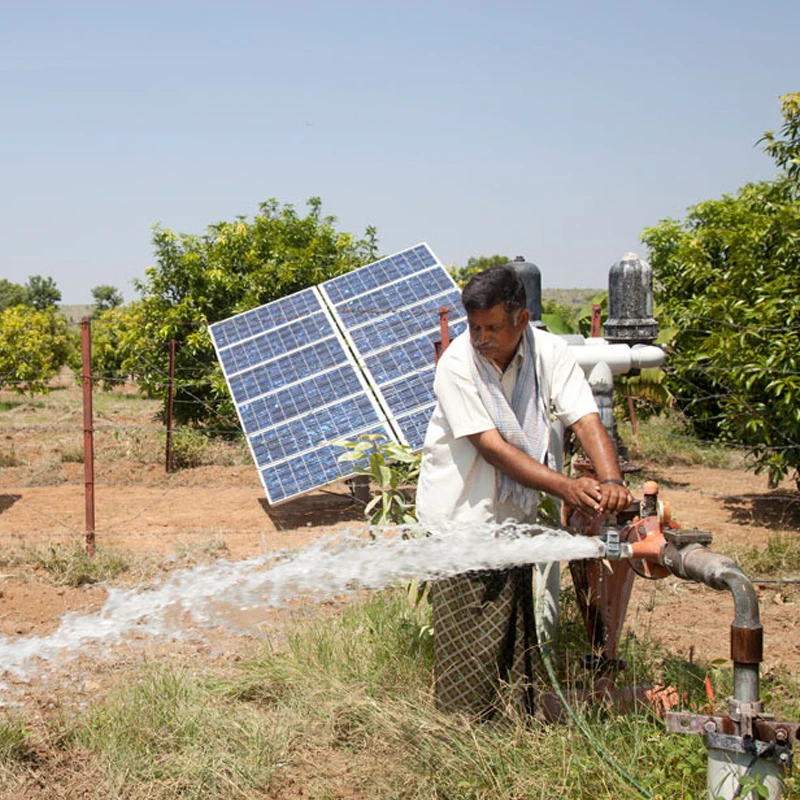

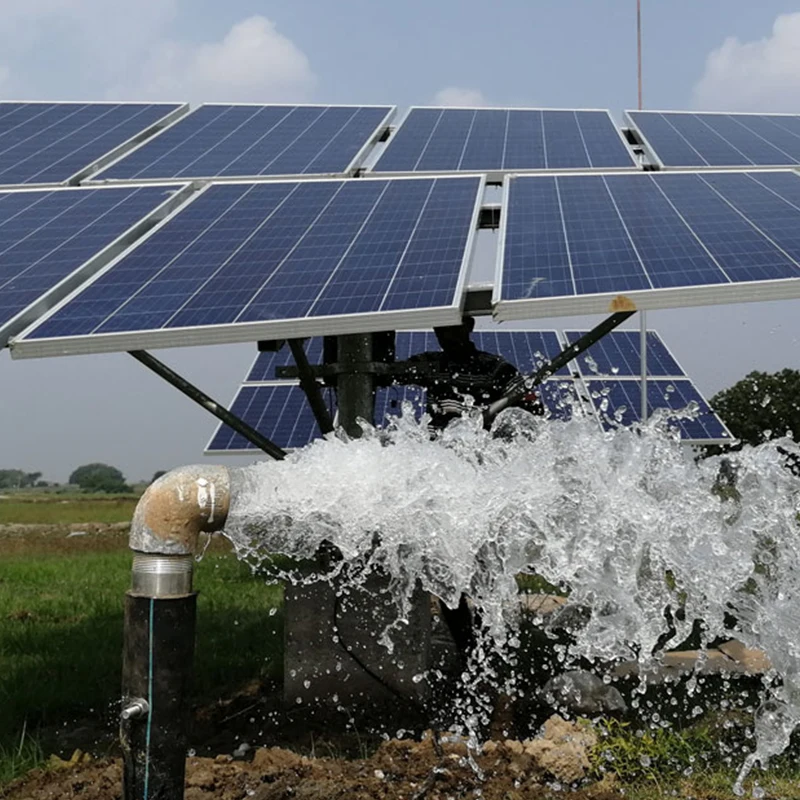

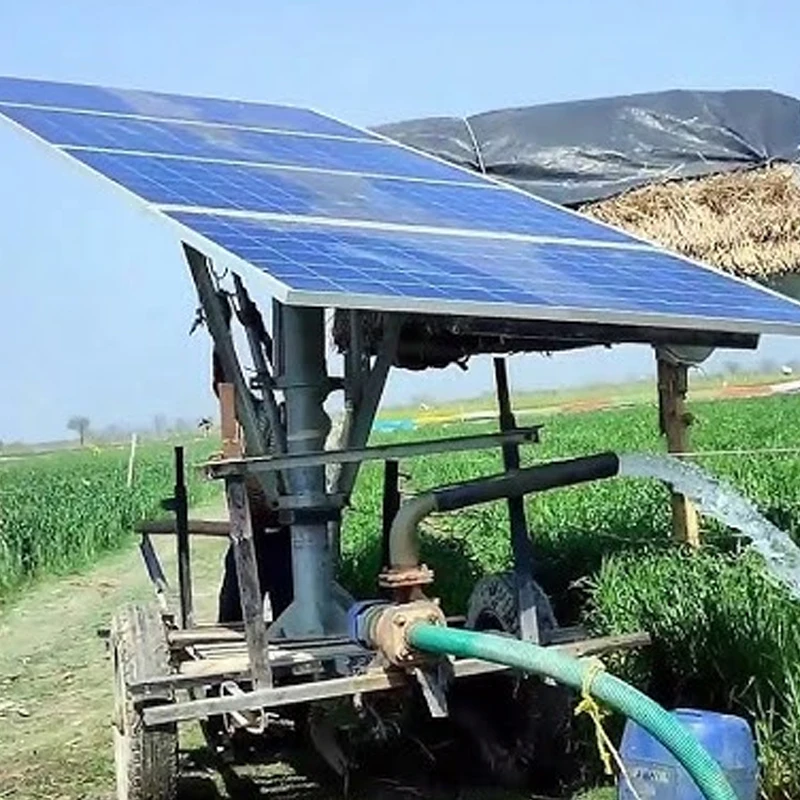

irrigation

Solar-powered water pumps deliver water to places without any existing infrastructure to alleviate food shortages and generate significant income for farmers and around the world.

swimming pool loop

A solar pool pump keeps your pool clear without any electricity bills. Many countries offer tax incentives and government grants to encourage homeowners to use solar water systems.

Solar pumps for aquaculture and river maintenance

If you have aquaculture or require river maintenance and don’t want to increase operating and maintenance costs, a solar aeration pump system is ideal. There is no risk of electric shock due to weak electricity. Zero operating and maintenance costs.

Feedback

Place: Zambia

Model: 4DPC9-58-110-1300 4-inch DC plastic impeller submersible pump application feedback location: Zambia The water pump is of good quality and the delivery was prompt. They actively track the shipment status of the goods and provide us with timely feedback. The water pump is running fine now.

Place: South Africa

Model: 3DSS1.2-56-24-120 3-inch DC screw solar submersible pump application feedback Solved my daily water supply problem. The water pump I use only requires a 200W solar panel, which can meet the water supply for our whole family.

Place: Thailand

Model: DCPM50-17-110-1500 DCPM series solar ground pump application feedback It works great for watering my fields. The flow rate is very large, which can fully meet the irrigation needs of my 5 acres of land.

Place: USA

Model: DLP15-14-48-500 500w solar swimming pool pump application feedback I have a small swimming pool of 3m*10m. Looking to replace the previous AC pump with a solar pool pump. Very professional and recommended products that fit me perfectly.

Packaging and shipping

What We Get For You (Package Include):

– 1 x DC brushless solar Pump with 2m cable
– 1 x Pump controller with MPPT function
– 1 xStainless steel float switch (sensor for the tank)
– 1 x Pump outlet joint connector
– 1 x Splice kit for cable join

Packing Details:

Outer Packaging: high-quality strong export wooden boxInner Packaging: bubble bag to protect the controller and water pump from damage during transportation
