Unmatched Efficiency and Versatility

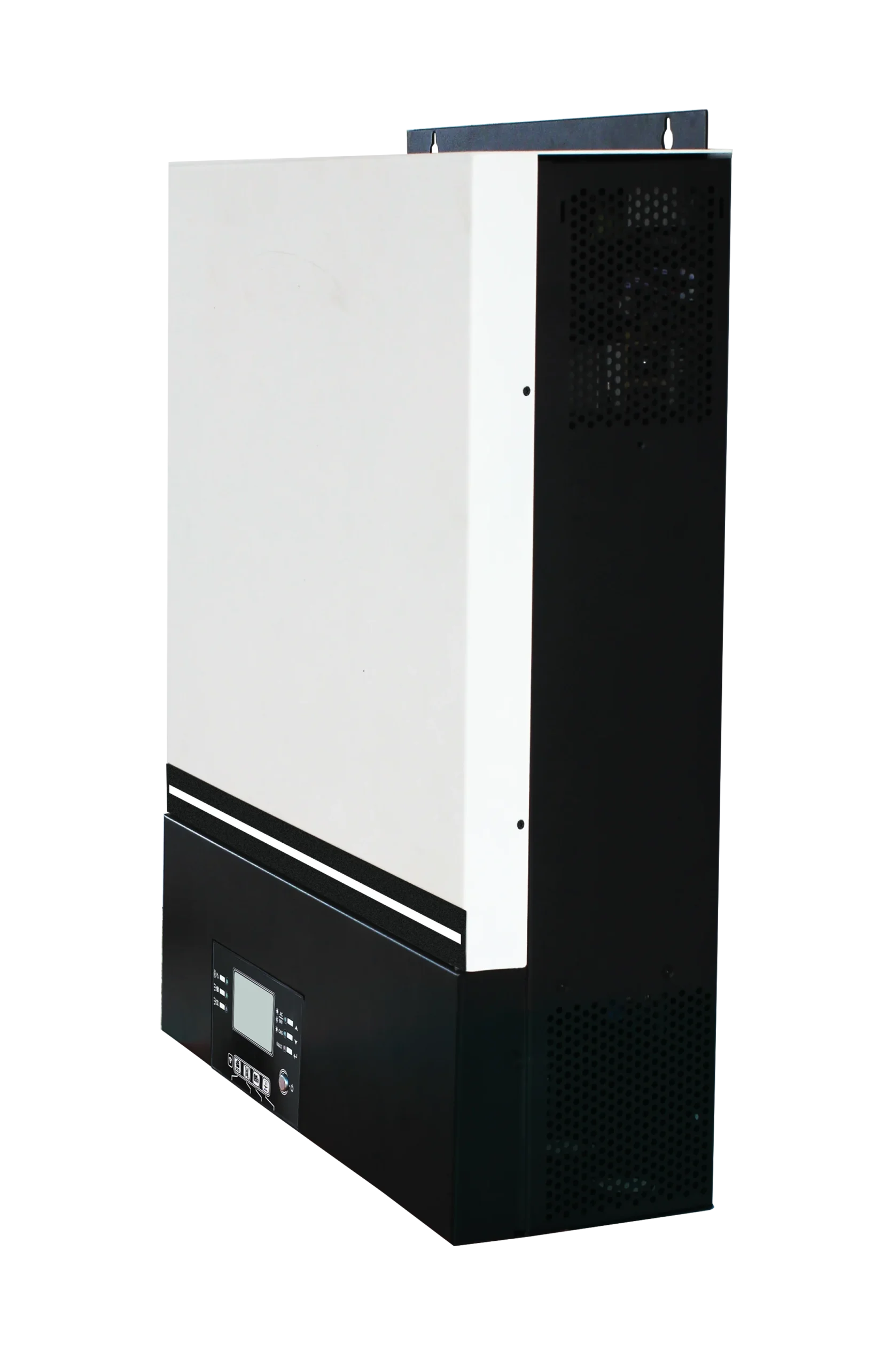

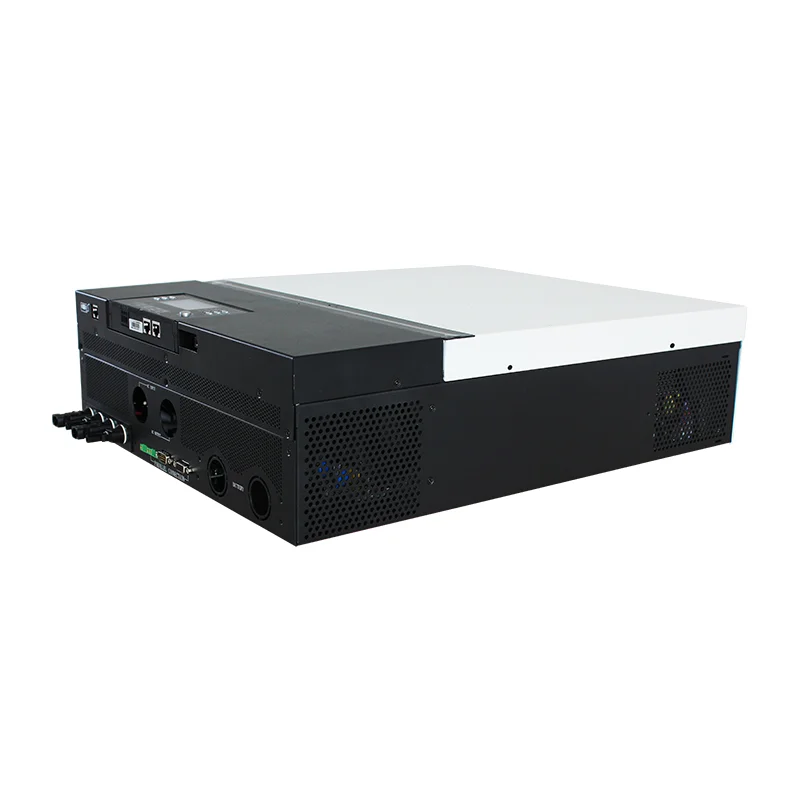

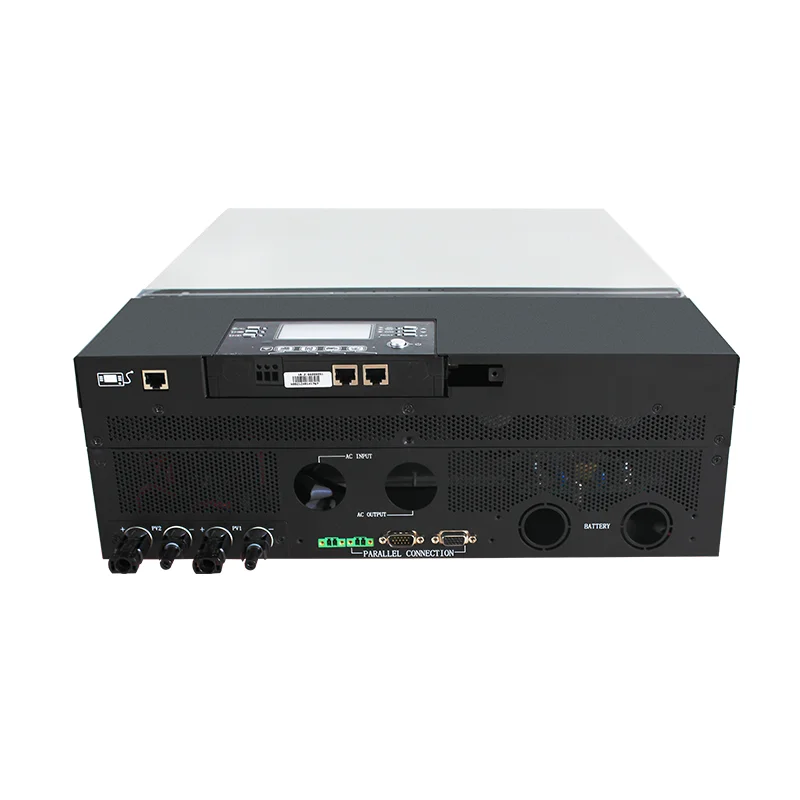

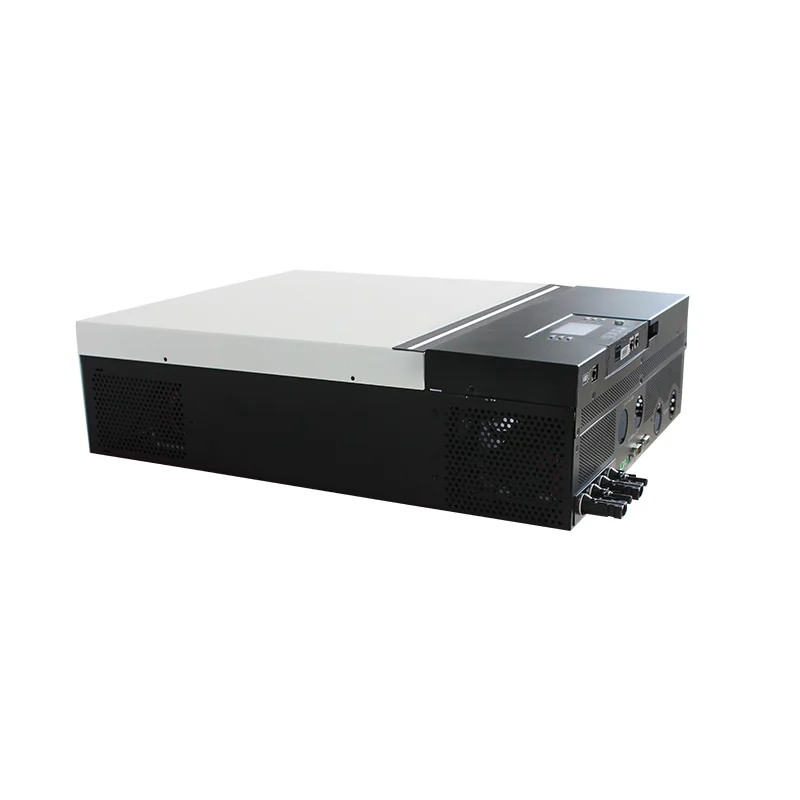

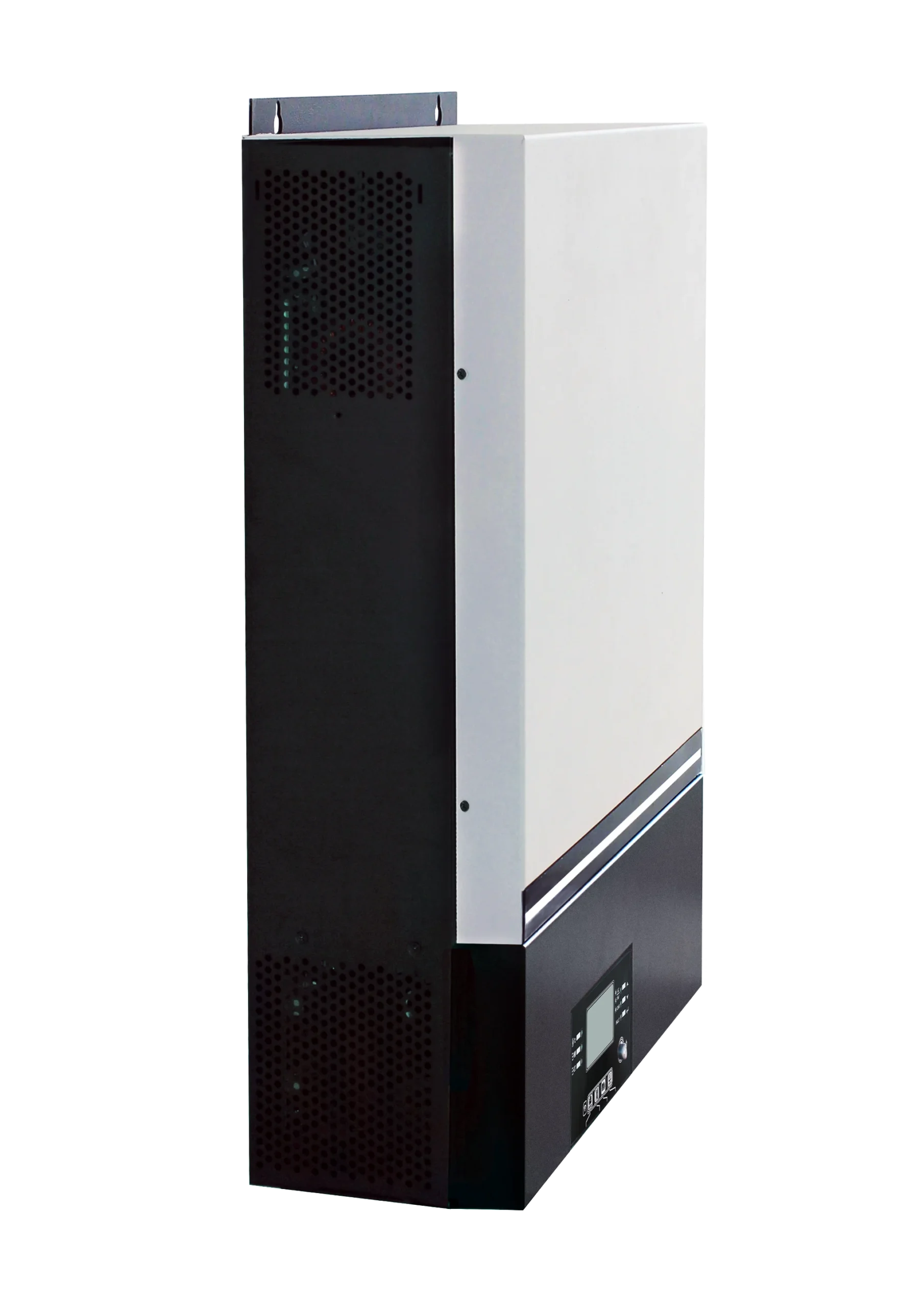

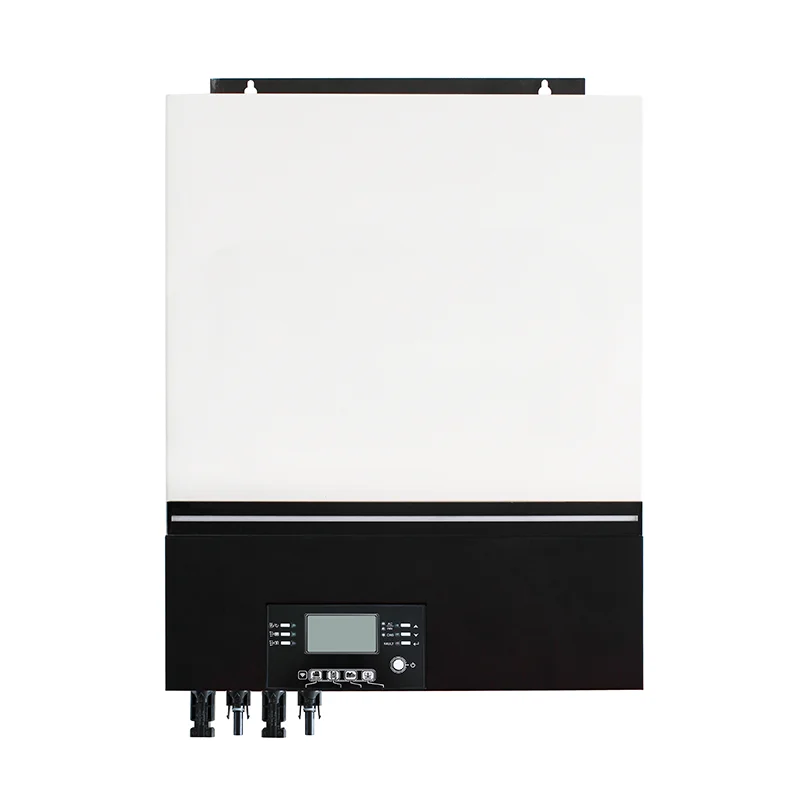

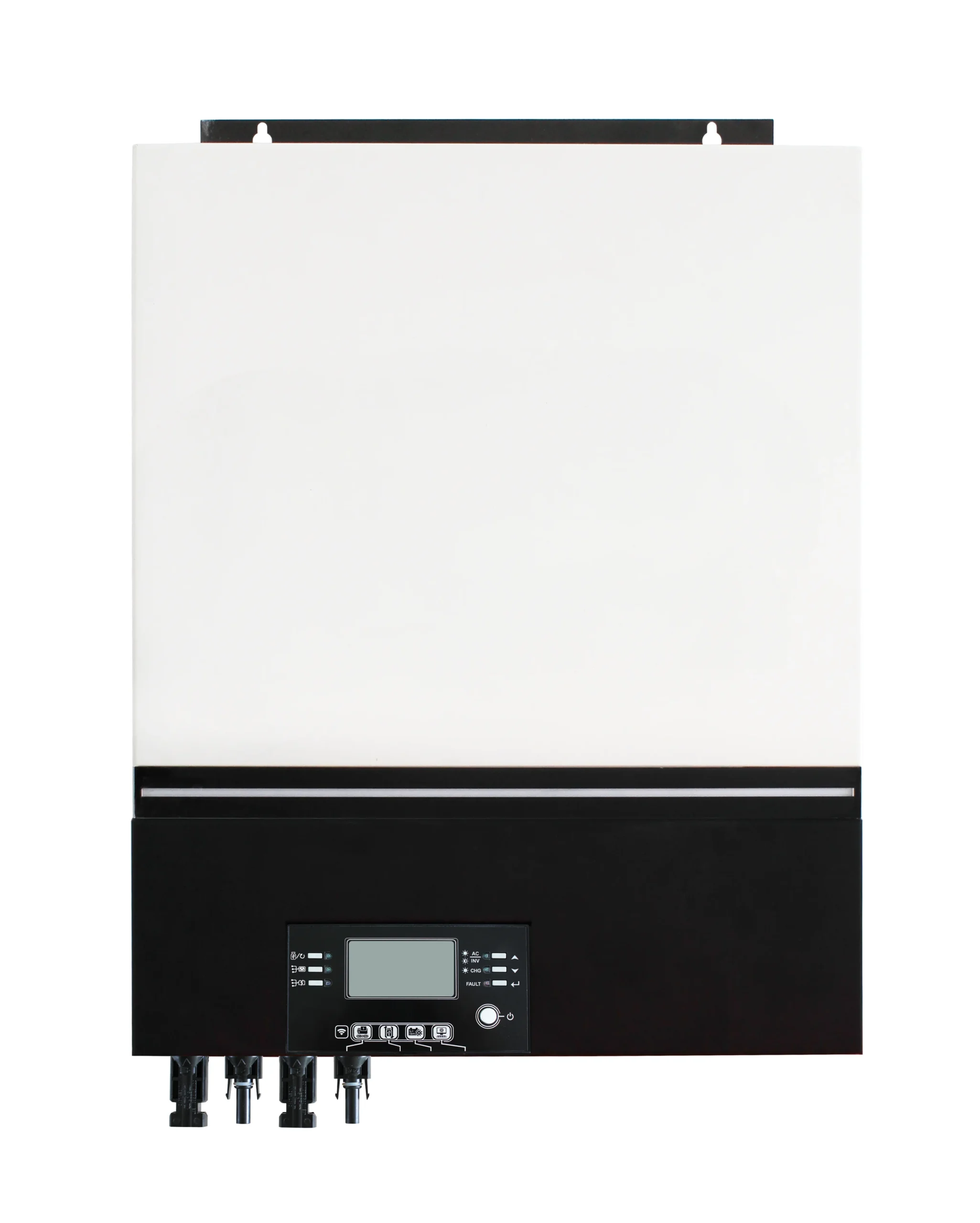

Introducing the SC-MAX 8KW 10KW Off-Grid Solar Hybrid Inverter, a high-performance solution designed to meet all your energy needs seamlessly. Powered by a built-in MPPT solar charge controller, this inverter offers unparalleled efficiency in harnessing solar energy while supporting hybrid functionality to blend renewable sources and traditional power systems effectively.
Reliable Power for Off-Grid Living
The SC-MAX Solar Hybrid Inverter combines innovation and dependability, making it perfect for residential, commercial, or agricultural applications. With power output options of 8KW and 10KW, it is optimized for both small and large-scale setups. Whether you’re living off the grid, augmenting your existing energy setup, or striving for sustainability, this inverter ensures consistent energy supply and reduced reliance on traditional utilities.
Key Features for Enhanced Performance
The SC-MAX Off-Grid Hybrid Inverter is engineered to deliver superior performance under various conditions. Its built-in MPPT solar charge controller maximizes solar energy harvest by tracking optimal power points, even under fluctuating sunlight conditions. The robust construction ensures durability, and its hybrid system allows smooth integration across multiple energy sources, ensuring versatility for diverse applications. Additionally, the user-friendly interface and smart monitoring capability provide complete control over your power consumption and management.
Embrace the SC-MAX Inverter and step into the future of energy autonomy. Experience improved performance, flexibility, and reliability with this advanced solar hybrid inverter. Make the switch to sustainable energy today!
|
Model
|
SC-MAX 8KW
|
|||||||||||||||
|
Rated Power
|
8000VA/8000W
|
|||||||||||||||
|
Parallel Capability
|
YES
|
|||||||||||||||
|
Input
|
||||||||||||||||
|
Voltage
|
230VAC
|
|||||||||||||||
|
Selectable voltage range
|
170-280 VAC (For Personal Computers); 90-280VAC (For Home Appliances)
|
|||||||||||||||
|
Frequency Range
|
50Hz/60 (Auto sensing)
|
|||||||||||||||
|
Ouput
|
||||||||||||||||
|
AC Voltage Regulation
(Batt.Mode) |
230VAC±5%
|
|||||||||||||||
|
Surge Capability
|
2 times of rating power for 5 seconds
|
|||||||||||||||
|
Efficiency (Peak)
|
93%
|
|||||||||||||||
|
Transfer Time
|
15 ms (For Personal Computer); 20 ms (For Home Appliances)
|
|||||||||||||||
|
No Load Power Consumption
|
<70W
|
|||||||||||||||
|
Waveform
|
Pure sine wave
|
|||||||||||||||
|
Battery
|
||||||||||||||||
|
Battery Voltage
|
48VDC
|
|||||||||||||||
|
Floating Charge Voltage
|
54VDC
|
|||||||||||||||
|
Overcharge Protection
|
66VDC
|
|||||||||||||||
|
SOLAR CHARGER&AC CHARGER
|
||||||||||||||||
|
Maximum PV Array Power
|
8000W
|
|||||||||||||||
|
MPPT Range @
Operating Voltage |
90VDC~450VDC
|
|||||||||||||||
|
Maximum PV Array
Open Circuit Voltage |
500VDC
|
|||||||||||||||
|
Maximum Solar Charge Current
|
120A
|
|||||||||||||||
|
Maximum AC Charge Current
|
120A
|
|||||||||||||||
|
Maximum Charge Current
|
120A
|
|||||||||||||||
|
PHYSICAL
|
||||||||||||||||
|
Dimension, D×W×H(mm)
|
147.4×432.5×5553.6
|
|||||||||||||||
|
Net Weight(kgs)
|
18.4
|
|||||||||||||||
|
ENVIRONMENT
|
||||||||||||||||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|||||||||||||||
|
Operating Temperature
|
－10℃~50℃
|
|||||||||||||||
|
Storage Temperature
|
﹣15℃~60℃
|
|||||||||||||||
