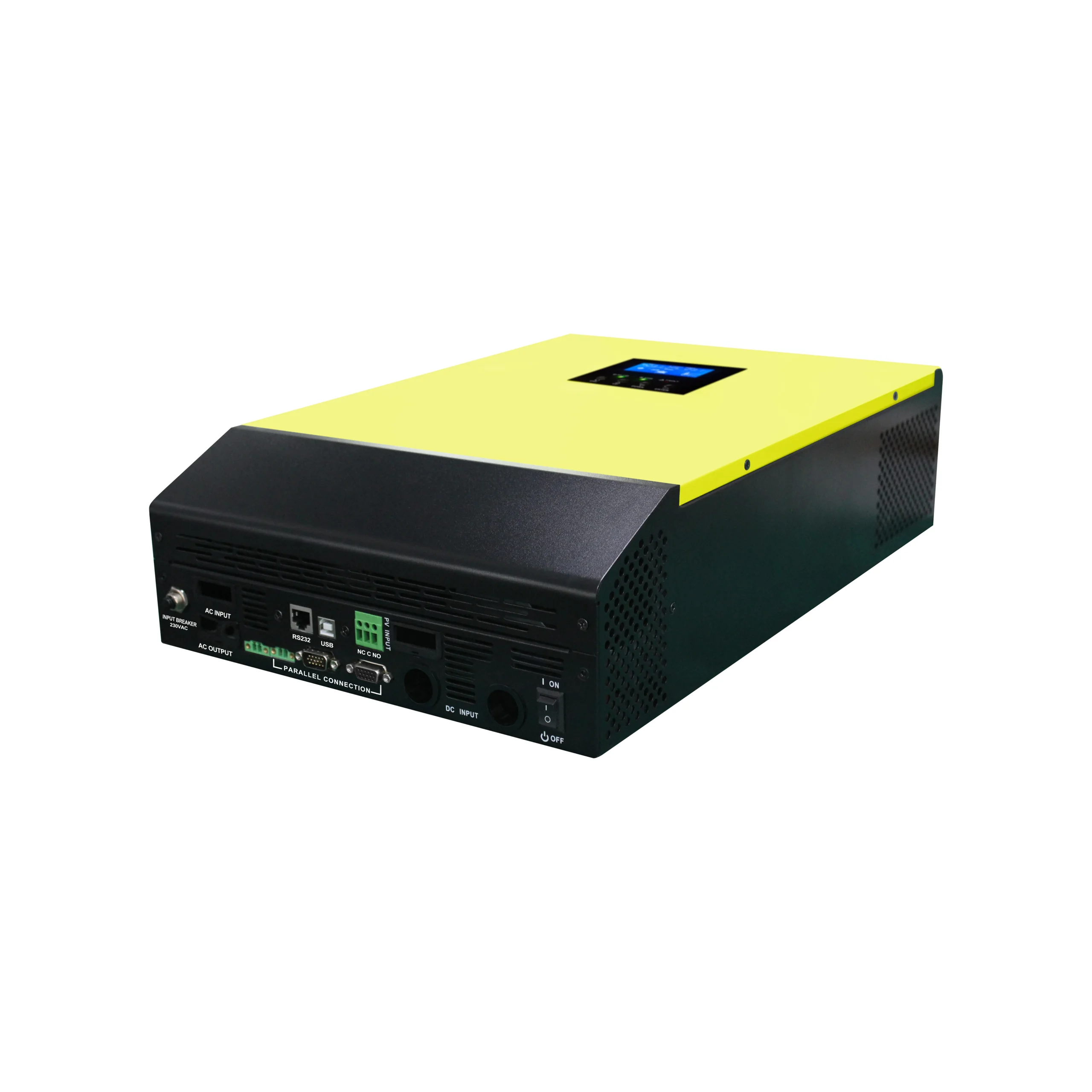

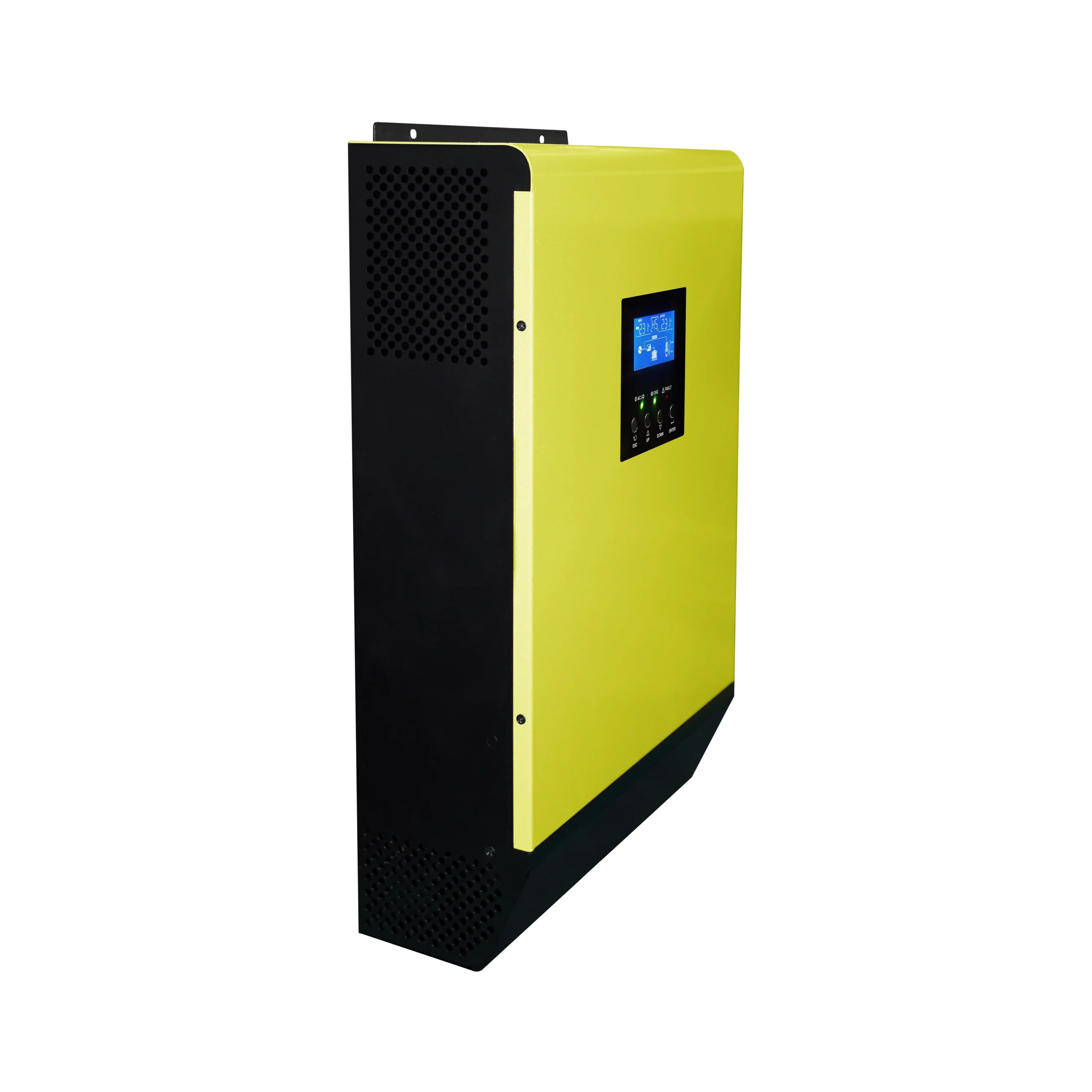

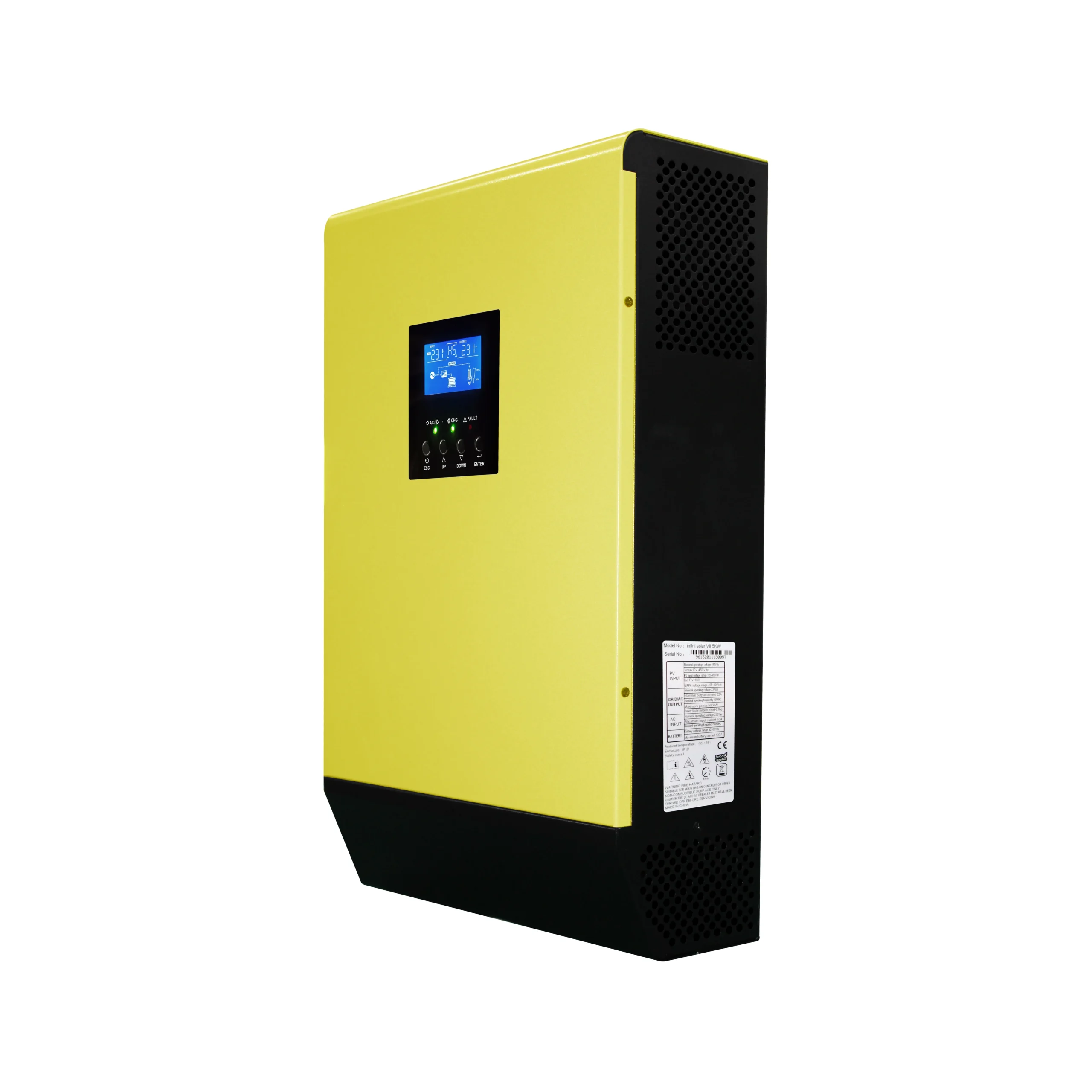

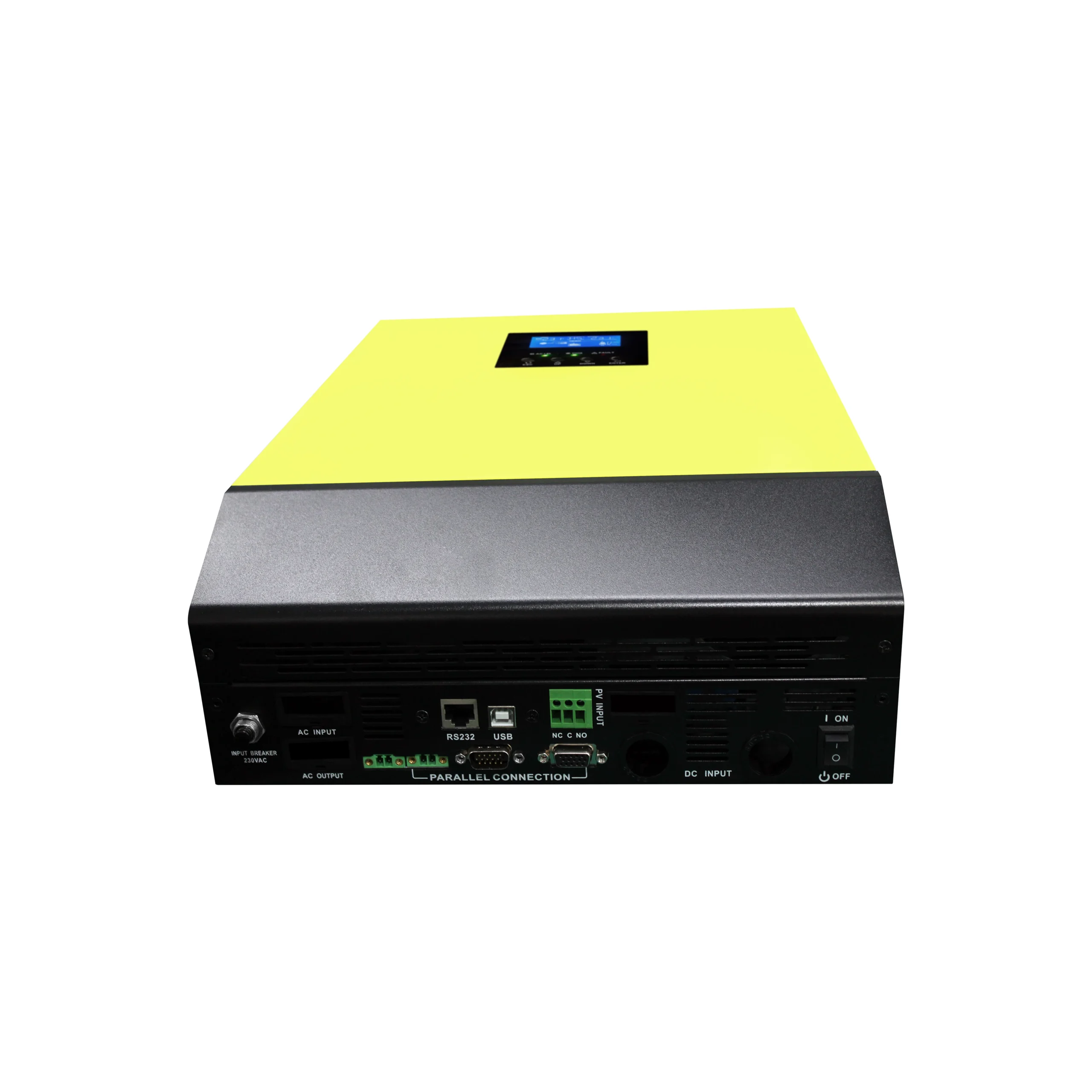

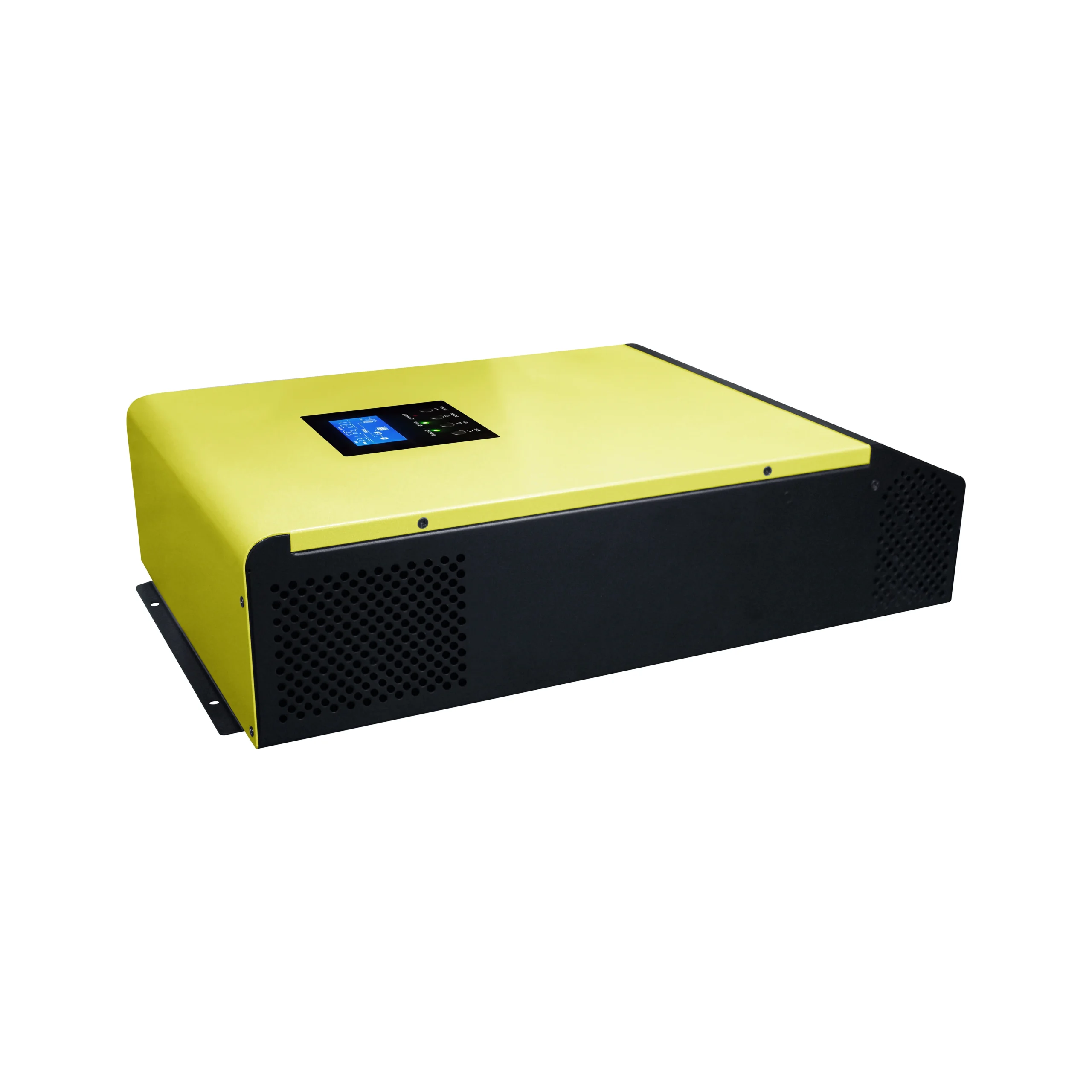

Hot Sale 5KW 48V 230VAC Inverter Solar Hybrid MPPT Controller Built-in On/Off Grid Pure Sine Factory for Home Appliance

An All-in-One Solution for Solar Power Needs

Upgrade your home energy system with the Hot Sale 5KW 48V 230VAC Inverter Solar Hybrid MPPT Controller. With its innovative engineering and multi-functional features, this inverter is designed to seamlessly integrate into both off-grid and on-grid systems. Whether you’re looking to power home appliances, reduce reliance on traditional energy sources, or prepare for power outages, this product delivers unmatched performance and reliability.

Advanced MPPT Technology for Maximum Efficiency

What sets this solar inverter apart is its built-in Maximum Power Point Tracking (MPPT) controller. This advanced technology optimizes the energy capture from your solar panels, ensuring peak performance even under variable sunlight conditions. The result? Higher energy harvest, reduced energy waste, and overall improved efficiency. Whether you’re running low-consumption electronics or high-demand home appliances, the MPPT controller ensures everything operates smoothly.

Pure Sine Wave for Safeguarding Appliances

Many conventional inverters provide modified sine wave output, which can be harsh on your appliances over time. The 5KW Solar Hybrid Inverter generates a pure sine wave output, mirroring the quality of power supplied by the grid. This makes it ideal for powering sensitive devices such as computers, refrigerators, air conditioners, or televisions without any risk of damage or performance fluctuations.

Product Description (UMI 007)

Specification   007

Model

SC-VII 5K-48

Rated Output Power

5000W

Max PV Array Power

5000W

MPPT Range @Operating Voltage

120-450VDC

Grid-Tie Operation

Grid Output (AC)

Norminal Output Voltage

220/230/240VAC

Output Voltage Range

184-265VAC

Nominal Output Current

25A/23.9A/22.9A

Efficiency

UP to 93.5%

Frequency Range

50Hz/60 (Auto sensing)

Off-Grid, Hybrid Operation

Grid Input

Acceptable Input Voltage Range

120-280VAC

Frequency Range

50Hz/60Hz (Auto sensing)

Battery Mode Output (AC)

Nominal Output Voltage

220/230/240VAC

Output Wave Form

Pure Sine Wave

Battery & Charge

Nominal DC Voltage

48VDC

Maximum Solar Charge Current

90A

Maximum AC Charge Current

60A

Maximum Charge Current

90A

Emergency Output Power

Maximum Output Power

5500W

Surge Power

10000VA

Automatic Transfer time

<8ms

General

Interface

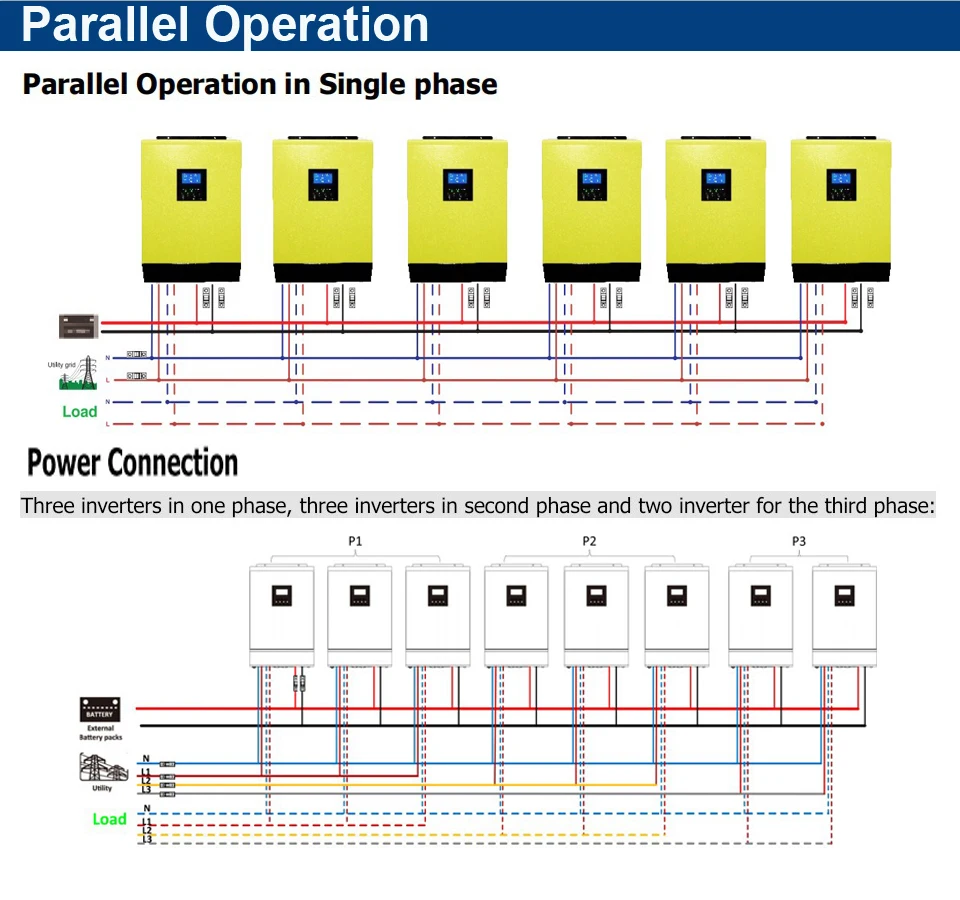

Parallel Function

YES

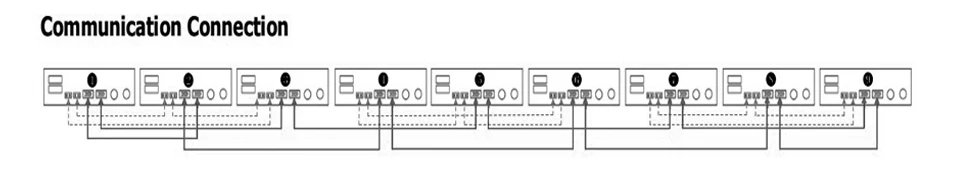

Communication

USB or RS232/Dry-Contact

ENVIRONMENT

Humidity

0-90%RH (Non-condensing)

Operating Temperature

0℃~55℃

Storage Temperature

﹣15℃~60℃

Dimension, D×W×H(mm)

120×295×468

Net Weight(kgs)

11.35

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

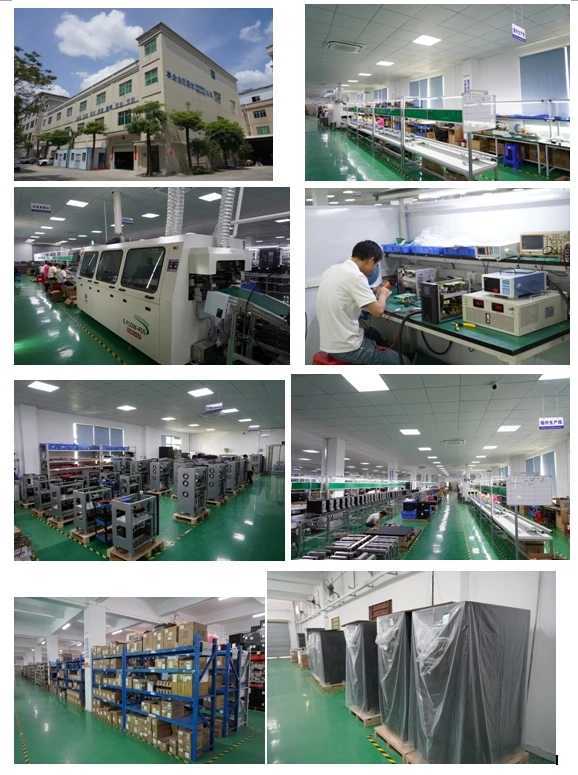

Factory photo
