China Factory Hybrid Inverter 1.5KW 2.4KW Pure Sine Inverter Off Grid Inverter for Solar Applications

Unlock Energy Independence with Our Hybrid Inverter

Imagine a world where you’re less reliant on the grid, saving money and reducing your carbon footprint. Our China Factory Hybrid Inverter, available in 1.5KW and 2.4KW models, makes that dream a reality. These pure sine wave inverters are designed for off-grid solar applications, providing a stable and reliable power source for your home or business. Experience the freedom of generating and utilizing your own clean energy.

Superior Performance and Versatility

These hybrid inverters are more than just a power source; they’re a smart energy management system. The pure sine wave output ensures compatibility with a wide range of appliances and electronic devices, delivering clean and stable power just like the grid. Whether you’re running sensitive electronics or heavy-duty appliances, our inverters provide the reliable performance you need.

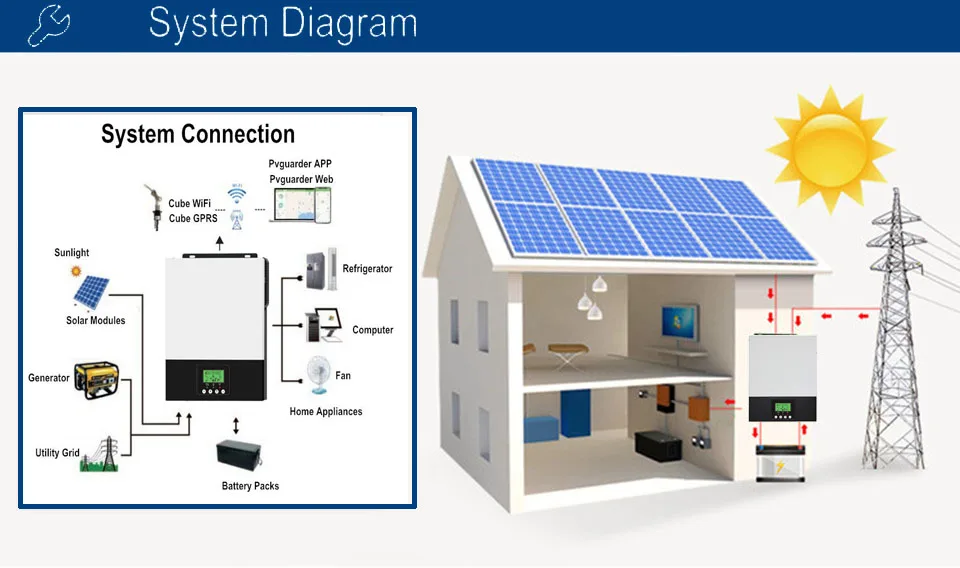

The 1.5KW and 2.4KW options offer flexibility to match your specific energy needs. These off-grid inverters seamlessly integrate with solar panels, batteries, and generators, creating a comprehensive and customizable energy solution. Enjoy uninterrupted power, even during outages, with automatic switching between power sources.

Built to Last, Designed for Efficiency

Manufactured in our China factory, these hybrid inverters are built to meet the highest standards of quality and reliability. Robust components and advanced engineering ensure long-lasting performance in demanding environments. Efficient energy conversion minimizes waste and maximizes the utilization of your solar power, saving you money and reducing your environmental impact.

Easy to install and operate, these hybrid inverters feature user-friendly interfaces and comprehensive monitoring capabilities. Keep track of your energy production, battery levels, and system performance with ease. With our hybrid inverter, you’re in control of your energy future.

Embrace a sustainable and cost-effective energy solution with our China Factory Hybrid Inverter. It’s the perfect choice for anyone looking to reduce their reliance on the grid and harness the power of the sun.



Product Description

Product Feature:

Pure Sine wave solar inverter

High PV input voltage range 90-430V

Built-in 80A MPPT solar charger

Battery equalization function to optimize battery performance and extend lifecycle

Built-in anti-dust kit for harsh environment

Support working without battery

Product Parameters  007

Model	VM 1.5K			VM 3K
Rated Power	1.5KVA/1.5KW			3KVA/2.4KW
Input
Voltage	230VAC
Voltage Range	170-280VAC(for PC )or 90-280VAC (for Home Appliance)
Frequency Range	60/50Hz(Auto sensing)
Output
AC Voltage Regulation(Bat Mode)	230VAC+-5%
Overload Protection	5s@≥150% load :10s@≥110%-150% load
Surge Capacity	2*rated power for 5 seconds
Efficiency (Peak)	91%
Transfer Time	10 ms typical (UPS) : 20ms typical ( Appliances)
Wave form	Pure sine wave
Battery
Batery Voltage	12VDC			24VDC
Floating charging Voltage	13.5VDC			27VDC
Over charging protection	16VDC			33VDC
Solar Charger &AC Charger
Solar Charger Type	MPPT

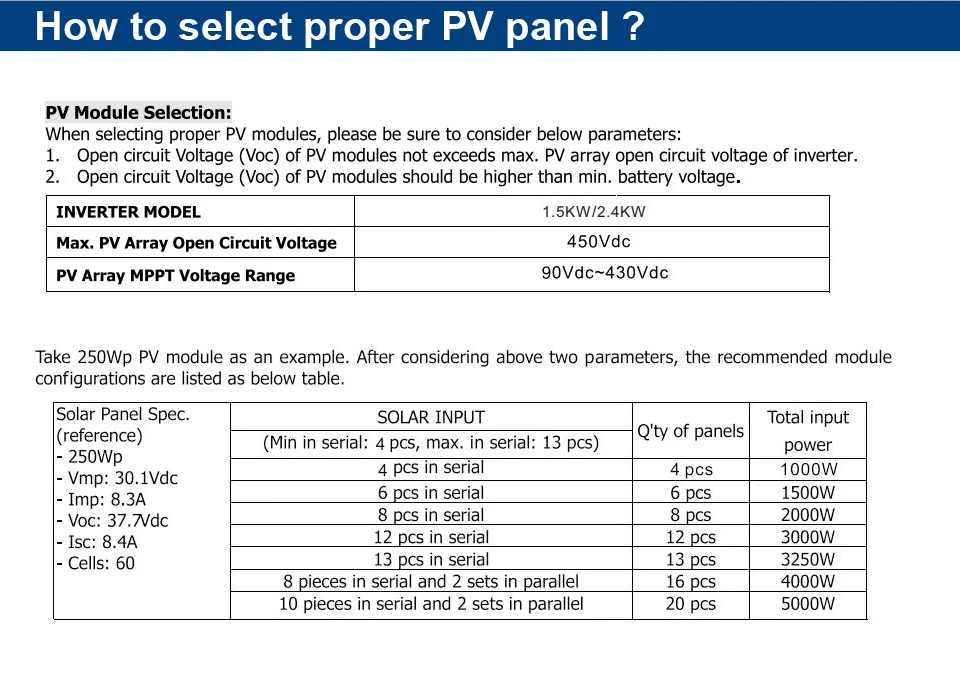

Max PV Array Open Circuit Voltage	450VDC			450VDC
Max PV Array Power	2000W			3000W
MPP Range@Operating Voltage	90VDC-450VDC			90VDC-450VDC
Niminal PV Voltage	240VDC			240VDC
Maximum Solar Charge Current	80A			80A
Maximum AC Charge Current	60A			60A
Maximum Charge Current	80A			80A
Physical

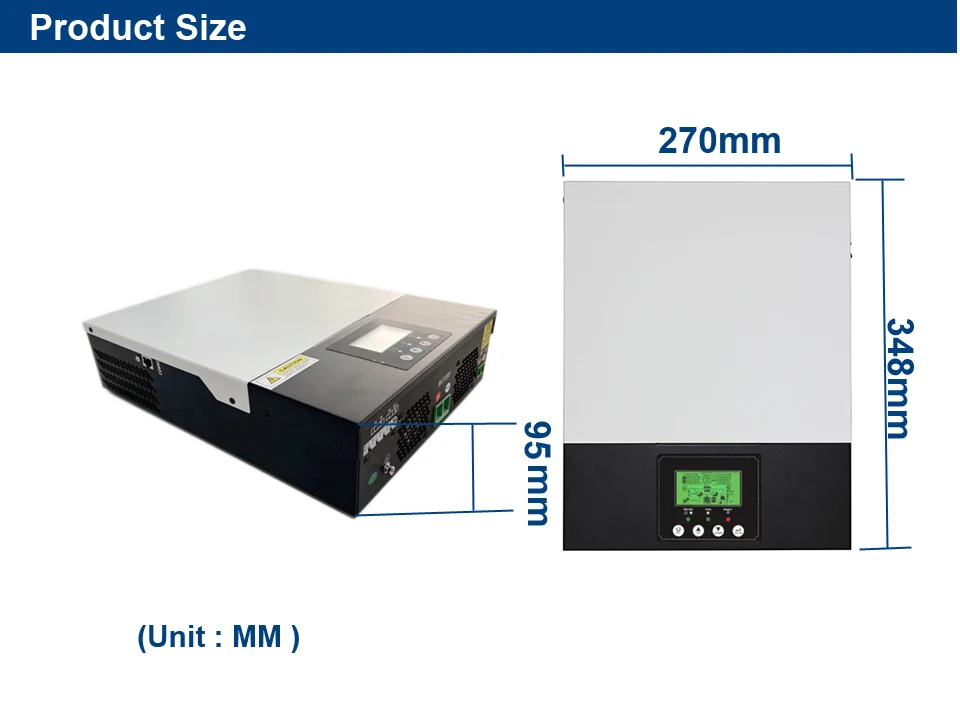

470mmX305mmX125mmDimension (L*W*H) mm	348mm*270mm*95mm			348mm*270mm*95mm
Comunication Interface	USB/R232/WIFI(optioanl )
Environment
Humidity	5-95% Relative Humidity (Non-condending)
Operating Temperature	‘-10°C to 50 °C
Storage Temperature	‘-15°C to 60 °C

Company Profile

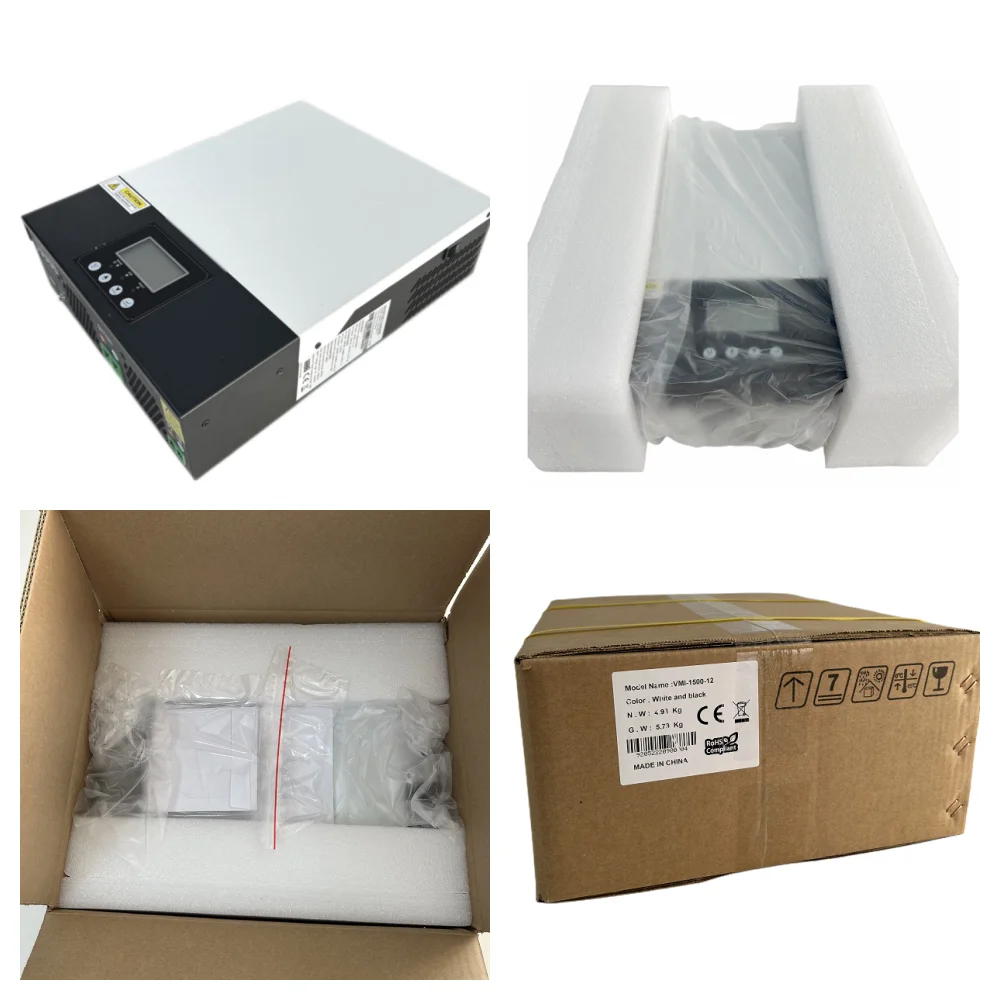

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1. How is the warranty period?
A: 12 mounths.Q2.Can you accept OEM, ODM service?
A: Yes.Q3. Certificates?
A: ISO, CE, RoHsQ4. PAYMENT?
A: TT, 30% deposit, 70% balance before shipmentQ5. Delivery time ?
A: 1~4 weeks.
