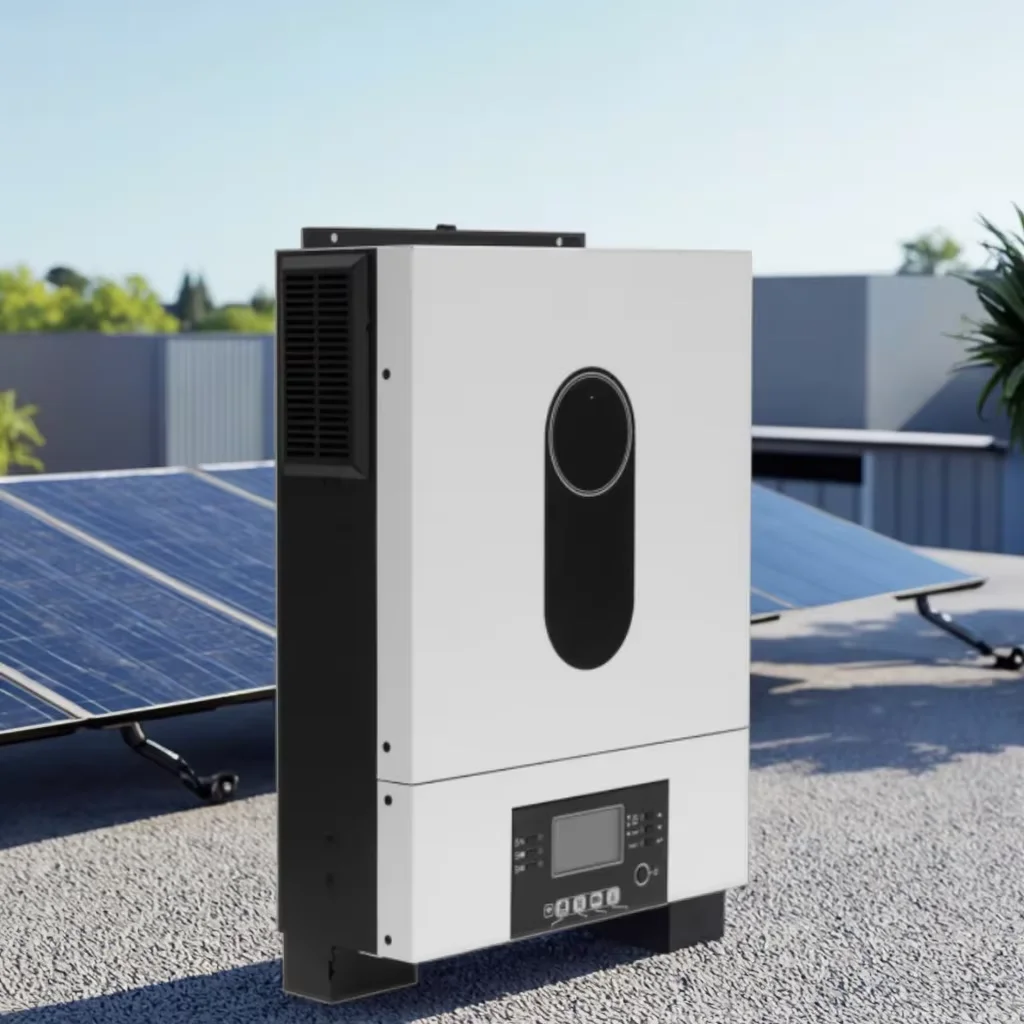

Unmatched Performance with 4.2KW & 6.2KW Hybrid Inverters
Experience a new era in energy efficiency with the 4.2KW & 6.2KW Hybrid Solar Inverter. Designed for optimal performance, this inverter bridges the gap between power reliability and innovation. Whether it’s for residential or light commercial use, this versatile unit ensures a seamless transition between solar energy and grid supply, granting you the power to stay connected without interruptions.
Integrated with Advanced MPPT Solar Charge Controller
This hybrid solar inverter comes with a built-in MPPT (Maximum Power Point Tracking) Solar Charge Controller, delivering unparalleled efficiency and precision. With the MPPT controller, you benefit from higher energy harvests as it maximizes the power output from your solar panels, adapting to varying sunlight conditions. This results in smarter and more effective energy utilization for your single-phase 230V systems.
Why Choose This On-Grid Hybrid Inverter?
With an operational frequency of 50Hz, the 4.2KW & 6.2KW Hybrid Solar Inverter offers reliability and compatibility, making it an ideal fit for modern energy setups. It automatically switches between solar power and grid power, ensuring uninterrupted energy when you need it the most. The robust design and cutting-edge technology make this solution not only durable but also highly efficient, providing long-term benefits and reducing dependency on traditional energy sources.
Whether you’re looking to cut energy costs, lower your carbon footprint, or have consistent power supply, this solar inverter is the perfect solution to empower your energy goals. Invest in innovation and sustainability today with the 4.2KW & 6.2KW Hybrid Solar Inverter.
|
Model
|
SC-MAX 4.2KW
|
|||||||||||||||
|
Rated Power
|
4200VA/4200W
|
|||||||||||||||
|
Parallel Capability
|
YES
|
|||||||||||||||
|
Input
|
||||||||||||||||
|
Voltage
|
230VAC
|
|||||||||||||||
|
Selectable voltage range
|
170-280 VAC (For Personal Computers); 90-280VAC (For Home Appliances)
|
|||||||||||||||
|
Frequency Range
|
50Hz/60 (Auto sensing)
|
|||||||||||||||
|
Ouput
|
||||||||||||||||
|
AC Voltage Regulation
(Batt.Mode) |
230VAC±5%
|
|||||||||||||||
|
Surge Capability
|
2 times of rating power for 5 seconds
|
|||||||||||||||
|
Efficiency (Peak)
|
93%
|
|||||||||||||||
|
Transfer Time
|
15 ms (For Personal Computer); 20 ms (For Home Appliances)
|
|||||||||||||||
|
No Load Power Consumption
|
<70W
|
|||||||||||||||
|
Waveform
|
Pure sine wave
|
|||||||||||||||
|
Battery
|
||||||||||||||||
|
Battery Voltage
|
48VDC
|
|||||||||||||||
|
Floating Charge Voltage
|
54VDC
|
|||||||||||||||
|
Overcharge Protection
|
66VDC
|
|||||||||||||||
|
SOLAR CHARGER&AC CHARGER
|
||||||||||||||||
|
Maximum PV Array Power
|
8000W
|
|||||||||||||||
|
MPPT Range @
Operating Voltage |
90VDC~450VDC
|
|||||||||||||||
|
Maximum PV Array
Open Circuit Voltage |
500VDC
|
|||||||||||||||
|
Maximum Solar Charge Current
|
120A
|
|||||||||||||||
|
Maximum AC Charge Current
|
120A
|
|||||||||||||||
|
Maximum Charge Current
|
120A
|
|||||||||||||||
|
PHYSICAL
|
||||||||||||||||
|
Dimension, D×W×H(mm)
|
144x420x590
|
|||||||||||||||
|
Net Weight(kgs)
|
19
|
|||||||||||||||
|
ENVIRONMENT
|
||||||||||||||||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|||||||||||||||
|
Operating Temperature
|
－10℃~50℃
|
|||||||||||||||
|
Storage Temperature
|
﹣15℃~60℃
|
|||||||||||||||

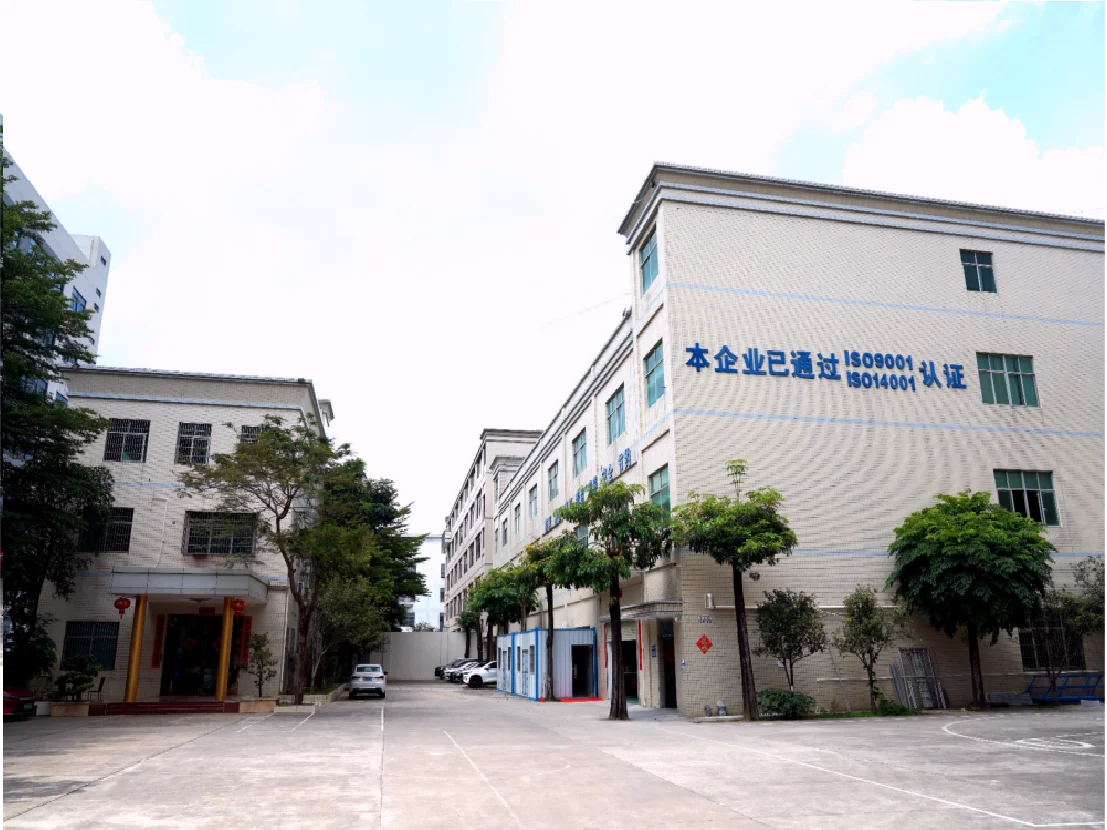

There are currently over 130 employees and the total area is 7,700 square meters.
Q:What is the warranty for this inverter?
A:, All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL,UPS,TNT,EMS,FedEx, Ship by sea ,by air
Q:What is the payment method?
A:We normally require a T/T advance payment. 30% deposit and 70% before shipping.
Q:Can we design packaing?
A:YES.We can do customer’s own packing
Q:Can we customize product?
A:YES.OEM&ODM.
